PLASMAIRE is an air plasma cutting equipment.


Models
PLASMAIRE 50
PLASMAIRE 80
PLASMAIRE 100
PLASMAIRE 120
PLASMAIRE 150


- AIR PLASMA CUTTING

Matter surrounds us in different states: solid, liquid, gaseous and plasma.

To change to plasma state a gas should be heated so intensely that it become ionized and thereby electrically conductive.

Gas emerges from the nozzle through the arc at a very high density, temperature and velocity, hitting the work piece so that the metal beneath the nozzle is almost instantly melted and blown away.

Since the plasma arc is so intensely hoy, over 20000 ºC, it can cut all electrically conductive materials.

Initially, the metod was limited to non-alloy steels but now plasma arc cutting can be used to work on difficult mechanized materials including aluminum, stainless steels and copper.


- PLASMAIRE EQUIPMENT


- Cut all kind of metals, even painted.

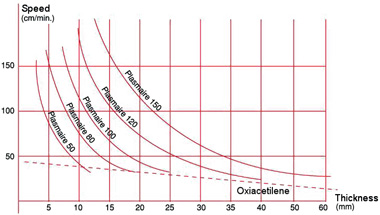

- Very high cutting speed compared with oxiacetilene, low deformation.
- Low cost consumables, with extended life.
- Designed for industrial use, overpowered; the duty cicle goes from 100% to 60% at the maximun range, but in Plasmaire 150 the duty cycle is 100% in all ranges.


- WHERE IS THE PLASMA CUTTING NECCESARY?


- Armored vehicle manufacture and repair
- Automotive repair
- Commercial ship repair
- Demolition and salvage
- Farm equipment maintenance
- Food processing
- Heating, ventilation and air conditioning
- Metal building construction
- Railway and railyard maintenance
- Recreational boat manufacturing
- Sign manufacturing
- Steel service centers
- Tank and vessel fabrication


- MODELS AND TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
PLASMAIRE 50
Main supply voltage (ACV)
3x380 or 3x220
Main supply current (ACA)
11
Frequency (Hz)
50/60
Cutting current (A)
28/40
Cutting capacity (mm)
0-10
Compressor (HP)
2
Cooling
air
Dimensions (mm)
440-660-500
Weight (kg)
55
TECHNICAL SPECIFICATIONS
PLASMAIRE 80
Main supply voltage (ACV)
3x380 or 3x220
Main supply current (ACA)
15
Frequency (Hz)
50/60
Cutting current (A)
32/60
Cutting capacity (mm)
0-16
Compressor (HP)
2
Cooling
air
Dimensions (mm)
440-660-500
Weight (kg)
60
TECHNICAL SPECIFICATIONS
PLASMAIRE 100
Main supply voltage (ACV)
3x380 or 3x220
Main supply current (ACA)
24
Frequency (Hz)
50/60
Cutting current (A)
40/90
Cutting capacity (mm)
0-25
Compressor (HP)
3
Cooling
air
Dimensions (mm)
440-760-710
Weight (kg)
120
TECHNICAL SPECIFICATIONS
PLASMAIRE 120
Main supply voltage (ACV)
3x380 or 3x220
Main supply current (ACA)
40
Frequency (Hz)
50/60
Cutting current (A)
40/70/120
Cutting capacity (mm)
1-40
Compressor (HP)
3
Cooling
air
Dimensions (mm)
540-860-850
Weight (kg)
210
TECHNICAL SPECIFICATIONS
PLASMAIRE 150
Main supply voltage (ACV)
3x380 or 3x220
Main supply current (ACA)
53
Frequency (Hz)
50/60
Cutting current (A)
70/120/150
Cutting capacity (mm)
1-50
Compressor (HP)
3
Cooling
water (built in closed circuit)
Dimensions (mm)
540-950-890
Weight (kg)
250
